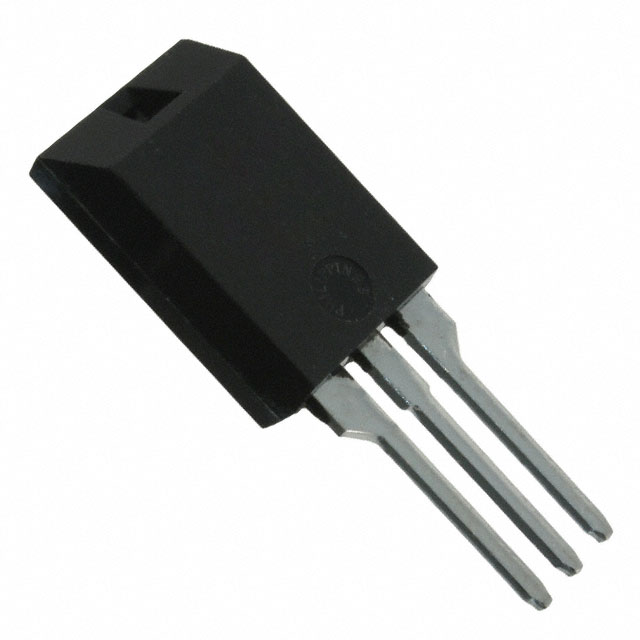

| Part number: | IXGC16N60C2D1 |
| Description: | IGBT 600V 20A 63W ISOPLUS220 |
| Manufacturer | Littelfuse / IXYS RF |
| Encapsulation | Tube |
| Quantity | 50 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Littelfuse / IXYS RF" |
| Package / Case | ISOPLUS220™ |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 30 ns |
| Vce(on) (Max) @ Vge, Ic | 3V @ 15V, 12A |
| Supplier Device Package | ISOPLUS220™ |
| IGBT Type | PT |
| Td (on/off) @ 25°C | 25ns/60ns |
| Switching Energy | 60µJ (off) |
| Test Condition | 400V, 12A, 22Ohm, 15V |
| Gate Charge | 32 nC |
| Current - Collector (Ic) (Max) | 20 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 100 A |
| Power - Max | 63 W |
|
