| Part number: | IXGH16N170AH1 |
| Description: | IGBT 1700V 16A 190W TO247 |
| Manufacturer | Littelfuse / IXYS RF |
| Encapsulation | Box |
| Quantity | 30 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Littelfuse / IXYS RF" |

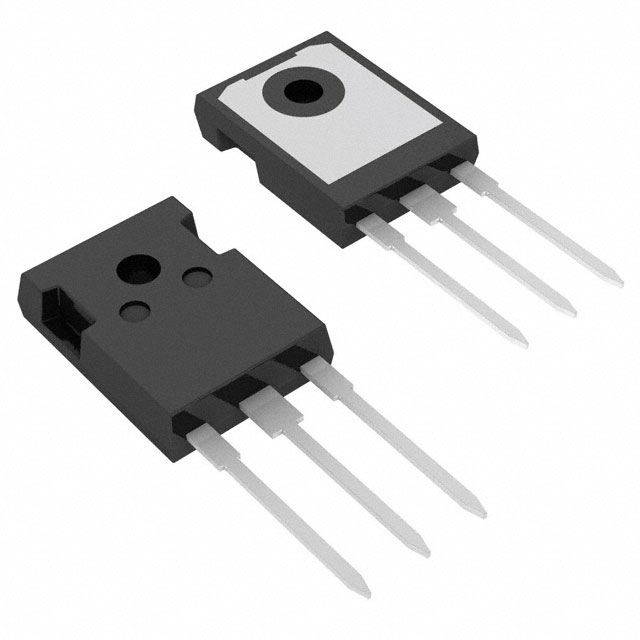

| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 230 ns |
| Vce(on) (Max) @ Vge, Ic | 5V @ 15V, 11A |
| Supplier Device Package | TO-247AD |
| IGBT Type | NPT |
| Td (on/off) @ 25°C | 36ns/160ns |
| Switching Energy | 900µJ (off) |
| Test Condition | 850V, 16A, 10Ohm, 15V |
| Gate Charge | 65 nC |
| Current - Collector (Ic) (Max) | 16 A |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V |
| Current - Collector Pulsed (Icm) | 40 A |
| Power - Max | 190 W |
|
