| Part number: | IXGH6N170A |
| Description: | IGBT 1700V 6A 75W TO247AD |
| Manufacturer | Littelfuse / IXYS RF |
| Encapsulation | Tube |
| Quantity | 30 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Littelfuse / IXYS RF" |

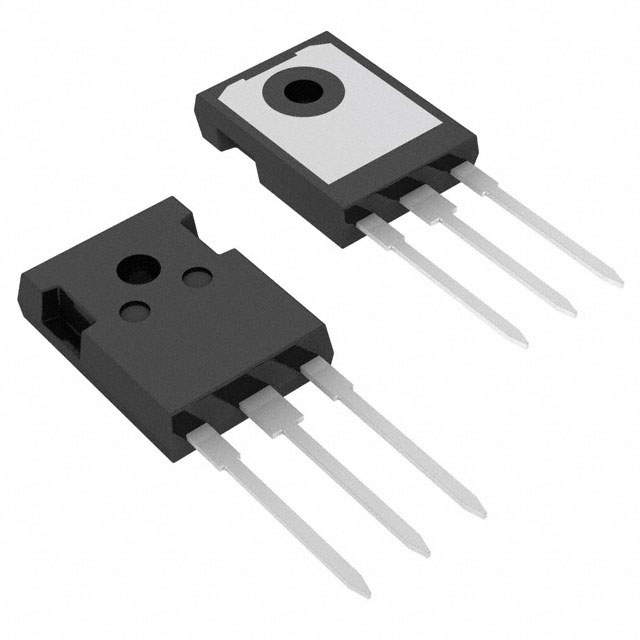

| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 7V @ 15V, 3A |
| Supplier Device Package | TO-247AD |
| IGBT Type | NPT |
| Td (on/off) @ 25°C | 46ns/220ns |
| Switching Energy | 590µJ (on), 180µJ (off) |
| Test Condition | 850V, 6A, 33Ohm, 15V |
| Gate Charge | 18.5 nC |
| Current - Collector (Ic) (Max) | 6 A |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V |
| Current - Collector Pulsed (Icm) | 14 A |
| Power - Max | 75 W |
|
