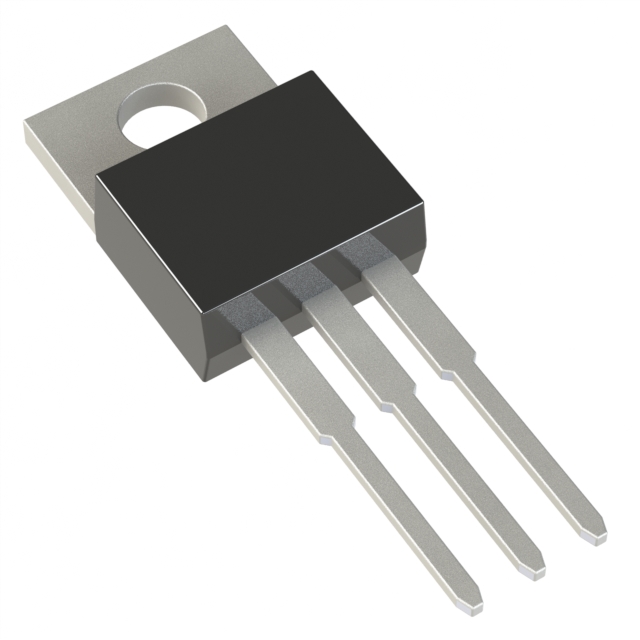

| Part number: | IXGP16N60B2D1 |
| Description: | IGBT 600V 40A 150W TO220 |
| Manufacturer | Littelfuse / IXYS RF |
| Encapsulation | Tube |
| Quantity | 50 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Littelfuse / IXYS RF" |
| Package / Case | TO-220-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 30 ns |
| Vce(on) (Max) @ Vge, Ic | 1.95V @ 15V, 12A |
| Supplier Device Package | TO-220-3 |
| IGBT Type | PT |
| Td (on/off) @ 25°C | 18ns/73ns |
| Switching Energy | 160µJ (on), 120µJ (off) |
| Test Condition | 400V, 12A, 22Ohm, 15V |
| Gate Charge | 24 nC |
| Current - Collector (Ic) (Max) | 40 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 100 A |
| Power - Max | 150 W |
|
