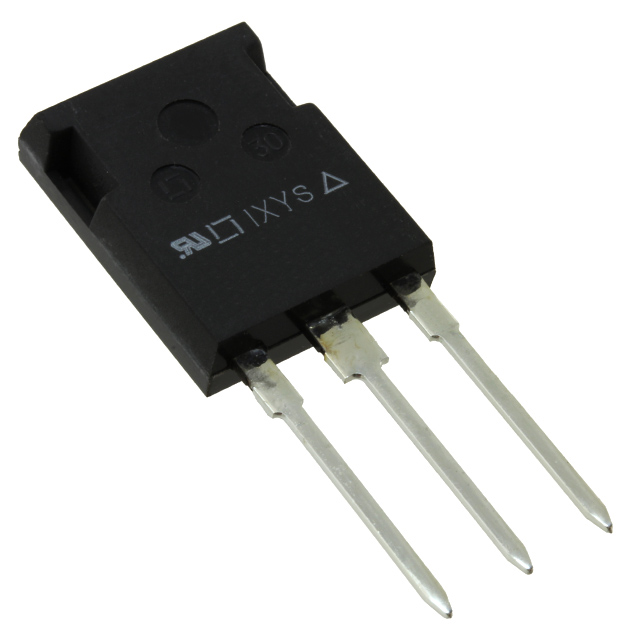

| Part number: | IXGR32N170AH1 |
| Description: | IGBT 1700V 26A 200W ISOPLUS247 |
| Manufacturer | Littelfuse / IXYS RF |
| Encapsulation | Tube |
| Quantity | 30 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Littelfuse / IXYS RF" |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 230 ns |
| Vce(on) (Max) @ Vge, Ic | 5.2V @ 15V, 21A |
| Supplier Device Package | ISOPLUS247™ |
| IGBT Type | NPT |
| Td (on/off) @ 25°C | 46ns/260ns |
| Switching Energy | 1.5mJ (off) |
| Test Condition | 1360V, 21A, 2.7Ohm, 15V |
| Gate Charge | 155 nC |
| Current - Collector (Ic) (Max) | 26 A |
| Voltage - Collector Emitter Breakdown (Max) | 1700 V |
| Current - Collector Pulsed (Icm) | 200 A |
| Power - Max | 200 W |
|
