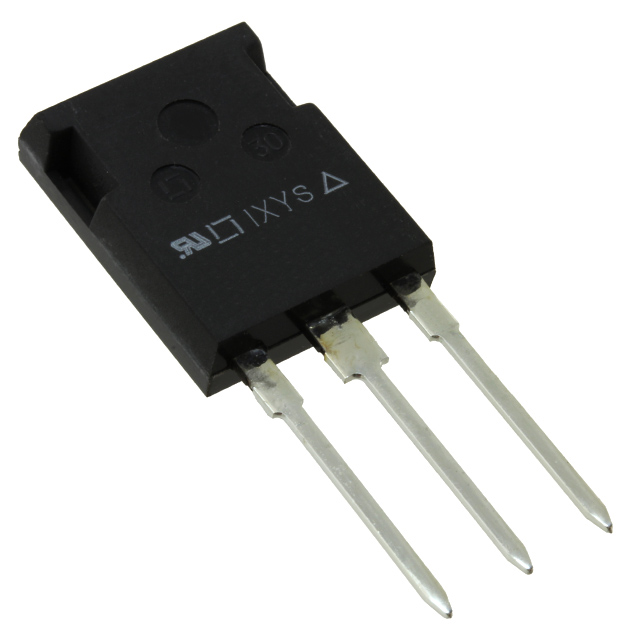

| Part number: | IXGR35N120B |
| Description: | IGBT 1200V 70A 200W ISOPLUS247 |
| Manufacturer | Littelfuse / IXYS RF |
| Encapsulation | Tube |
| Quantity | 30 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Littelfuse / IXYS RF" |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 3.3V @ 15V, 35A |
| Supplier Device Package | ISOPLUS247™ |
| IGBT Type | PT |
| Td (on/off) @ 25°C | 50ns/180ns |
| Switching Energy | 3.8mJ (off) |
| Test Condition | 960V, 35A, 4.7Ohm, 15V |
| Gate Charge | 170 nC |
| Current - Collector (Ic) (Max) | 70 A |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V |
| Current - Collector Pulsed (Icm) | 140 A |
| Power - Max | 200 W |
|
