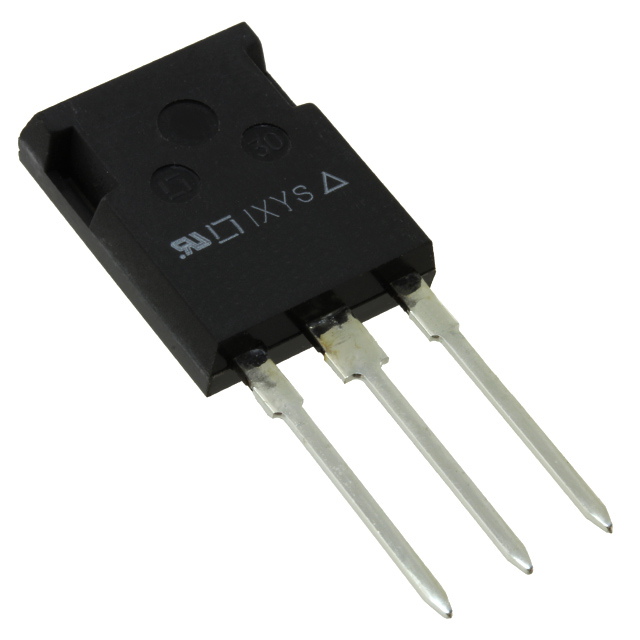

| Part number: | IXGR50N60B2D1 |
| Description: | IGBT 600V 68A 200W ISOPLUS247 |
| Manufacturer | Littelfuse / IXYS RF |
| Encapsulation | Tube |
| Quantity | 30 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Littelfuse / IXYS RF" |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 35 ns |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 40A |
| Supplier Device Package | ISOPLUS247™ |
| Td (on/off) @ 25°C | 18ns/190ns |
| Switching Energy | 550µJ (off) |
| Test Condition | 480V, 40A, 5Ohm, 15V |
| Gate Charge | 140 nC |
| Current - Collector (Ic) (Max) | 68 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 300 A |
| Power - Max | 200 W |
|
