| Part number: | IXGT60N60 |
| Description: | IGBT PT 600V 75A TO268AA |
| Manufacturer | Littelfuse / IXYS RF |
| Encapsulation | Tube |
| Quantity | 30 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Littelfuse / IXYS RF" |

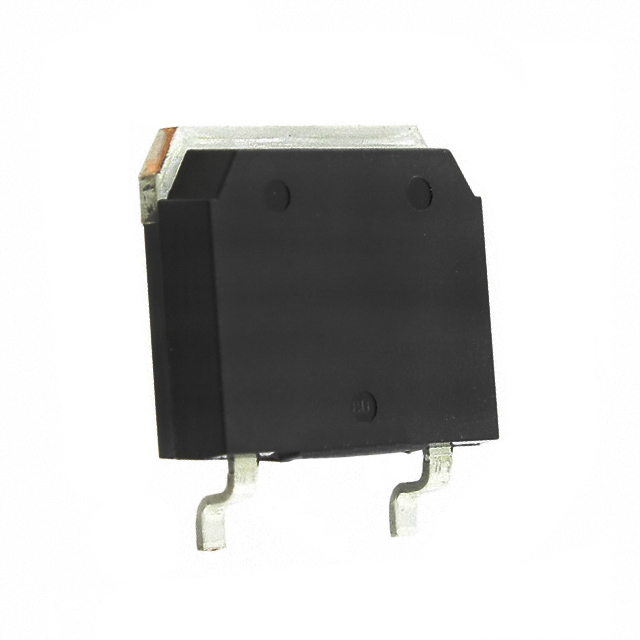

| Package / Case | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 1.7V @ 15V, 60A |
| Supplier Device Package | TO-268AA |
| IGBT Type | PT |
| Td (on/off) @ 25°C | 50ns/300ns |
| Switching Energy | 8mJ (off) |
| Test Condition | 480V, 60A, 2.7Ohm, 15V |
| Gate Charge | 130 nC |
| Current - Collector (Ic) (Max) | 75 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 200 A |
| Power - Max | 300 W |
|
