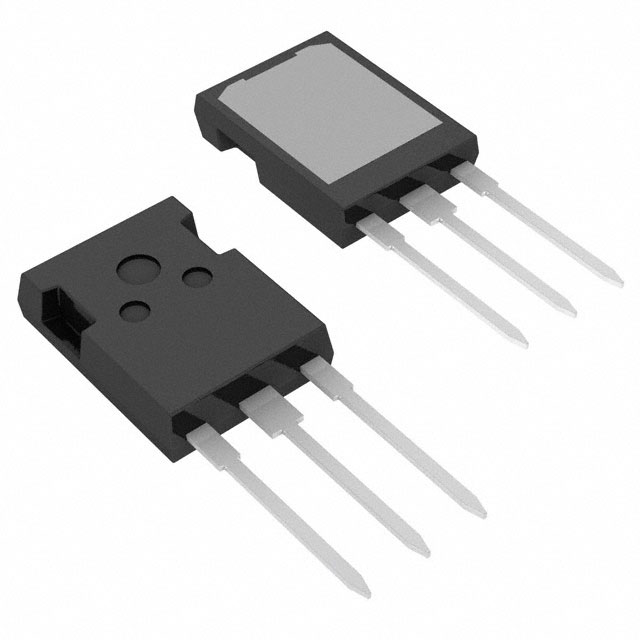

| Part number: | IXGX60N60B2D1 |
| Description: | IGBT 600V 75A 500W PLUS247 |
| Manufacturer | Littelfuse / IXYS RF |
| Encapsulation | Tube |
| Quantity | 30 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Littelfuse / IXYS RF" |
| Package / Case | TO-247-3 Variant |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Input Type | Standard |
| Reverse Recovery Time (trr) | 35 ns |
| Vce(on) (Max) @ Vge, Ic | 1.8V @ 15V, 50A |
| Supplier Device Package | PLUS247™-3 |
| IGBT Type | PT |
| Td (on/off) @ 25°C | 28ns/160ns |
| Switching Energy | 1mJ (off) |
| Test Condition | 400V, 50A, 3.3Ohm, 15V |
| Gate Charge | 170 nC |
| Current - Collector (Ic) (Max) | 75 A |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector Pulsed (Icm) | 300 A |
| Power - Max | 500 W |
|
