| Part number: | MCC200-18IO1 |

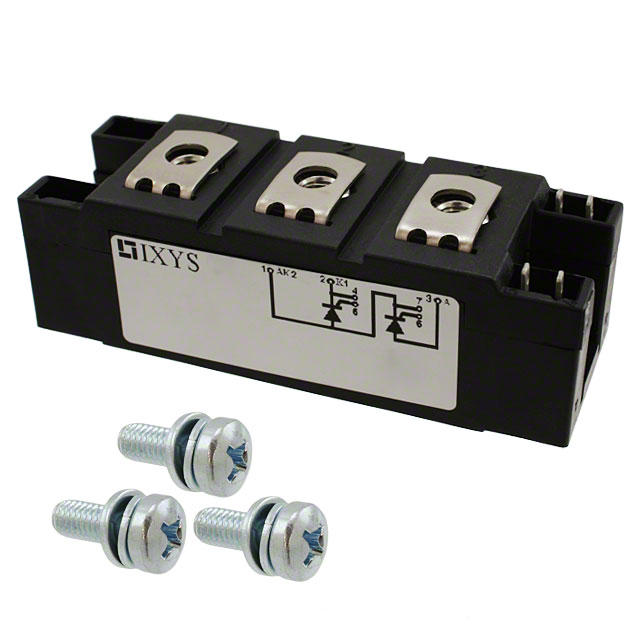

| Description: | MOD THYRISTOR DUAL 1800V Y4-M6 |
| Manufacturer | Littelfuse / IXYS RF |
| Encapsulation | Box |
| Quantity | 6 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Littelfuse / IXYS RF" |
| Package / Case | Y4-M6 |
| Mounting Type | Chassis Mount |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Structure | Series Connection - All SCRs |
| Current - Hold (Ih) (Max) | 150 mA |
| Current - Gate Trigger (Igt) (Max) | 150 mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 8000A, 8600A |
| Number of SCRs, Diodes | 2 SCRs |
| Current - On State (It (AV)) (Max) | 216 A |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V |
| Current - On State (It (RMS)) (Max) | 340 A |
| Voltage - Off State | 1.8 kV |
|
