| Part number: | NVMFWS003P03P8ZT1G |
| Description: | PFET SO8FL -30V 3MO |
| Manufacturer | Sanyo Semiconductor/onsemi |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1500 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Sanyo Semiconductor/onsemi" |

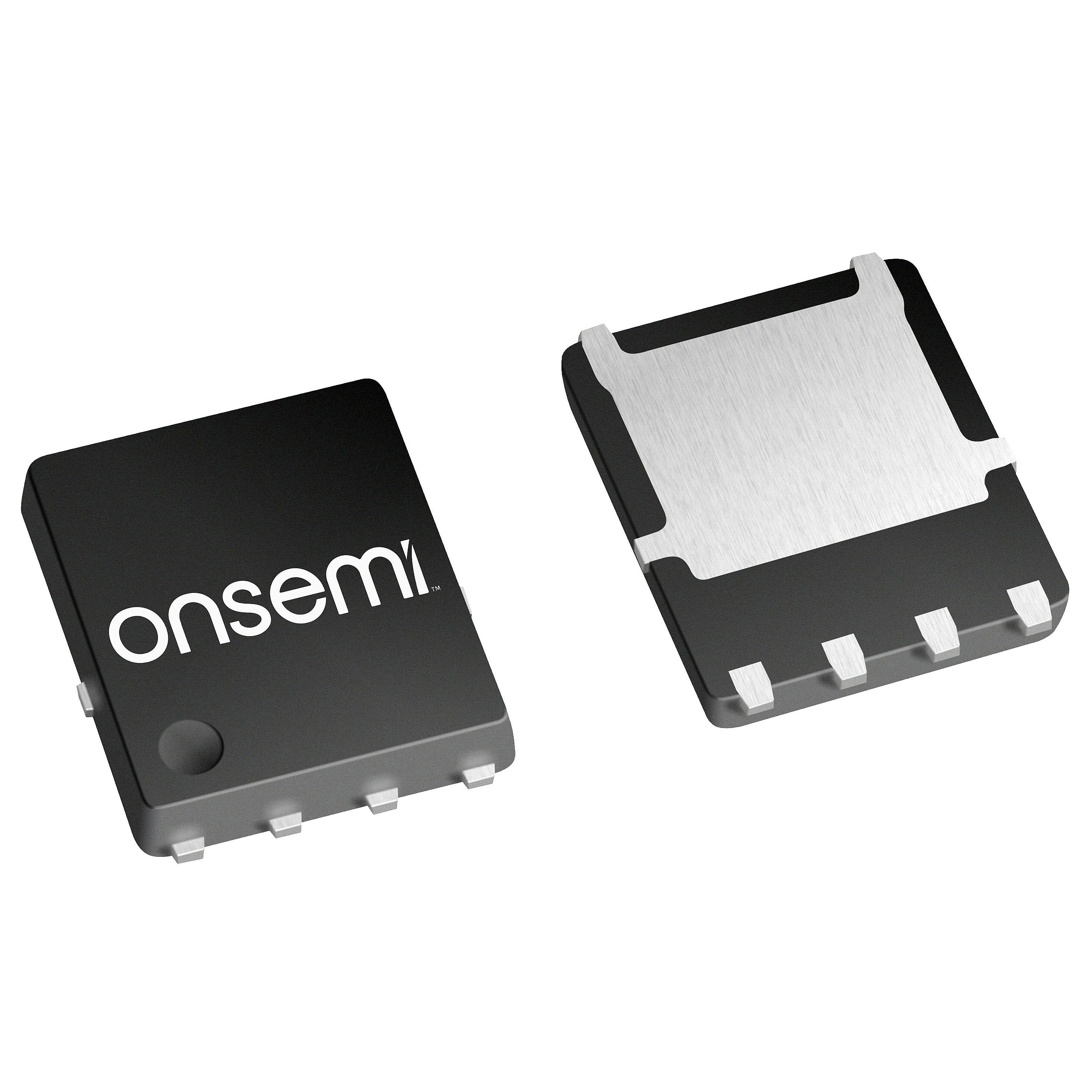

| Package / Case | 8-PowerTDFN, 5 Leads |
| Mounting Type | Surface Mount, Wettable Flank |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | MOSFET (Metal Oxide) |
| FET Type | P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 35.7A (Ta), 234A (Tc) |
| Rds On (Max) @ Id, Vgs | 1.8mOhm @ 23A, 10V |
| Power Dissipation (Max) | 3.9W (Ta), 168.7W (Tc) |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Supplier Device Package | 5-DFNW (4.9x5.9) (8-SOFL-WF) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Vgs (Max) | ±25V |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 167 nC @ 4.5 V |
| Input Capacitance (Ciss) (Max) @ Vds | 12120 pF @ 15 V |
|
