| Part number: | MDD172-14N1 |

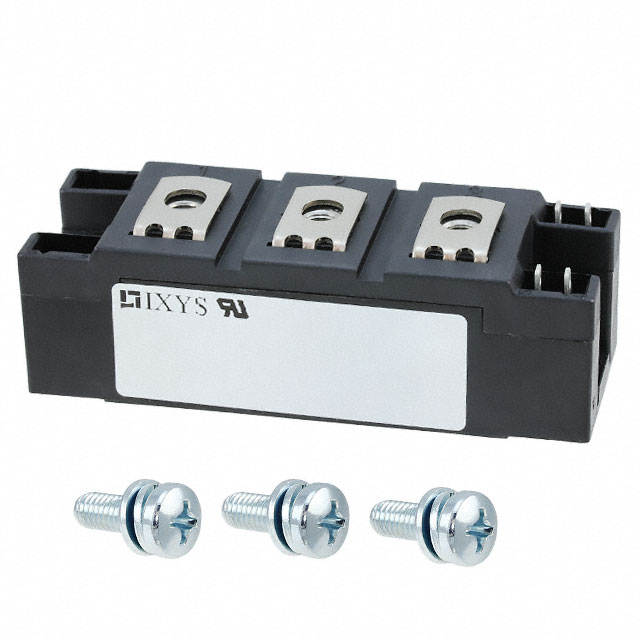

| Description: | DIODE MODULE GP 1400V 190A Y4-M6 |
| Manufacturer | Littelfuse / IXYS RF |
| Encapsulation | Box |
| Quantity | 6 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Littelfuse / IXYS RF" |
| Package / Case | Y4-M6 |
| Mounting Type | Chassis Mount |
| Speed | Standard Recovery >500ns, > 200mA (Io) |
| Technology | Standard |
| Diode Configuration | 1 Pair Series Connection |
| Current - Average Rectified (Io) (per Diode) | 190A |
| Supplier Device Package | Y4-M6 |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 1400 V |
| Voltage - Forward (Vf) (Max) @ If | 1.15 V @ 300 A |
| Current - Reverse Leakage @ Vr | 20 mA @ 1400 V |
|
