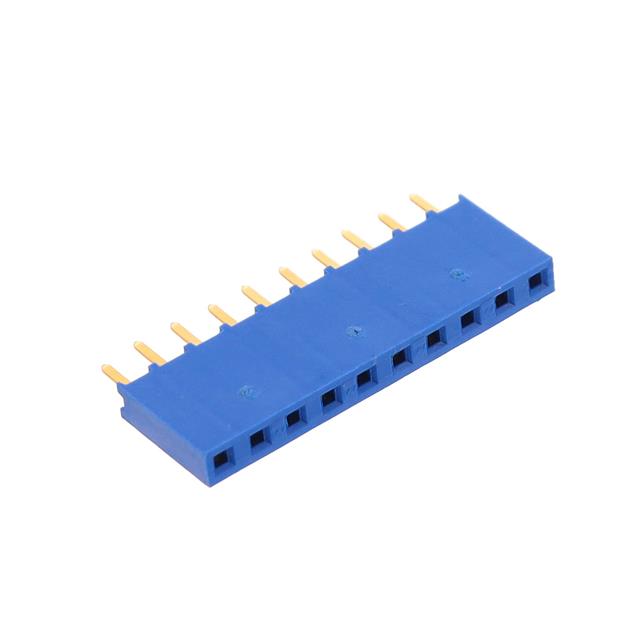

| Part number: | 76308-210LF |
| Description: | CONN RCPT 10POS 0.1 GOLD PCB |
| Manufacturer | Storage & Server IO (Amphenol Communications Solutions) |
| Encapsulation | Bulk |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Storage & Server IO (Amphenol Communications Solutions)" |
| Connector Type | Receptacle |
| Mounting Type | Through Hole |
| Number of Positions | 10 |
| Style | Board to Board or Cable |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Number of Positions Loaded | All |
| Termination | Solder |
| Material Flammability Rating | UL94 V-0 |
| Contact Material | Brass |
| Insulation Color | Blue |
| Pitch - Mating | 0.100" (2.54mm) |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 39.4µin (1.00µm) |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Contact Shape | Square |
| Contact Length - Post | 0.135" (3.43mm) |
| Insulation Height | 0.335" (8.51mm) |
| Insulation Material | Thermoplastic, Polyester, Glass Filled |
| Number of Rows | 1 |
|
