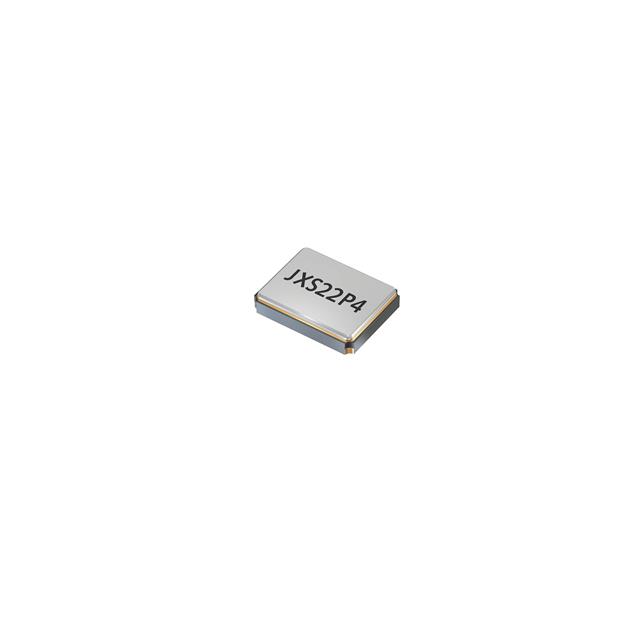

| Part number: | Q 12,0-JXS22P4-12-20/20-T1-AEC-LF |
| Description: | CRYSTAL 12 MHZ 12PF SMD |
| Manufacturer | Jauch Quartz |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Jauch Quartz" |
| Package / Case | 4-SMD, No Lead |
| Load Capacitance | 12pF |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Mounting Type | Surface Mount |
| Type | MHz Crystal |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | ±20ppm |
| Frequency Tolerance | ±20ppm |
| Operating Mode | Fundamental |
| Ratings | AEC-Q200 |
| Height - Seated (Max) | 0.024" (0.60mm) |
| ESR (Equivalent Series Resistance) | 150 Ohms |
| Frequency | 12 MHz |
|
