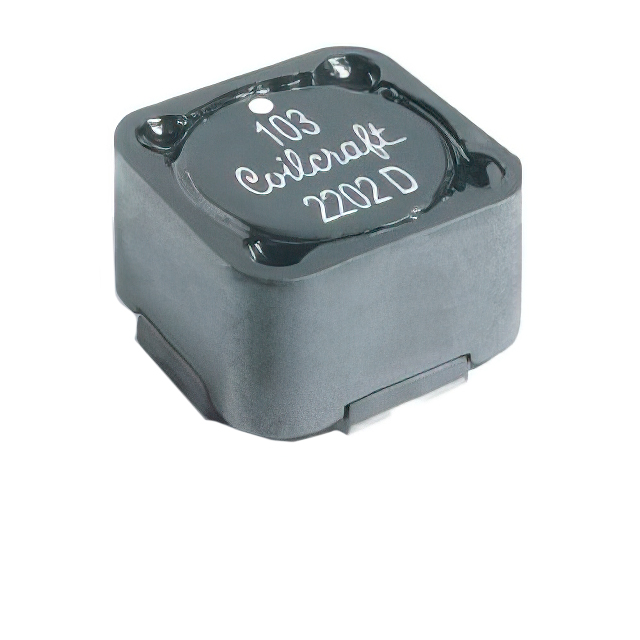

| Part number: | MSD1278H-394KED |
| Description: | FIXED INDUCTOR 390UH SMD |
| Manufacturer | COILCRAFT |
| Encapsulation | Strip |
| Quantity | 1 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "COILCRAFT" |
| Tolerance | ±10% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.484" L x 0.484" W (12.30mm x 12.30mm) |
| Mounting Type | Surface Mount |
| Shielding | Shielded |
| Operating Temperature | -40°C ~ 125°C |
| Height | 0.317" (8.05mm) |
| Number of Coils | 2 |
| Inductance - Connected In Series | 1.56 mH |
| Inductance - Connected In Parallel | 390 µH |
| DC Resistance (DCR) - Parallel | 455mOhm Max |
| DC Resistance (DCR) - Series | 1.82Ohm Max |
|
