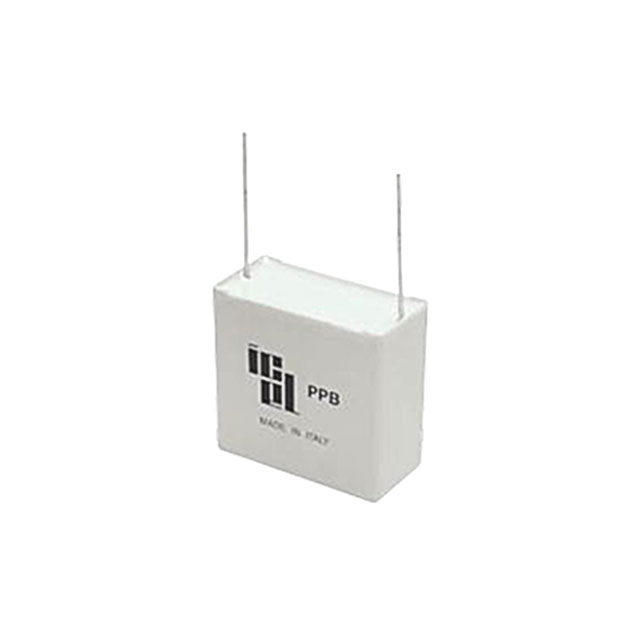

| Part number: | PPB1404100KHL |
| Description: | CAP FILM 1UF 10% 400VDC RADIAL |
| Manufacturer | Nichicon |
| Encapsulation | Bulk |
| Quantity | 266 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Nichicon" |
| Tolerance | ±10% |
| Package / Case | Radial |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 105°C |
| Applications | High Frequency, Switching; High Pulse, DV/DT; Snubber |
| Lead Spacing | 1.083" (27.50mm) |
| Termination | PC Pins |
| Dielectric Material | Polypropylene (PP), Metallized |
| Voltage Rating - AC | 250V |
| Voltage Rating - DC | 400V |
| Height - Seated (Max) | 1.299" (33.00mm) |
| Capacitance | 1 µF |
| Size / Dimension | 1.260" L x 0.709" W (32.00mm x 18.00mm) |
|
