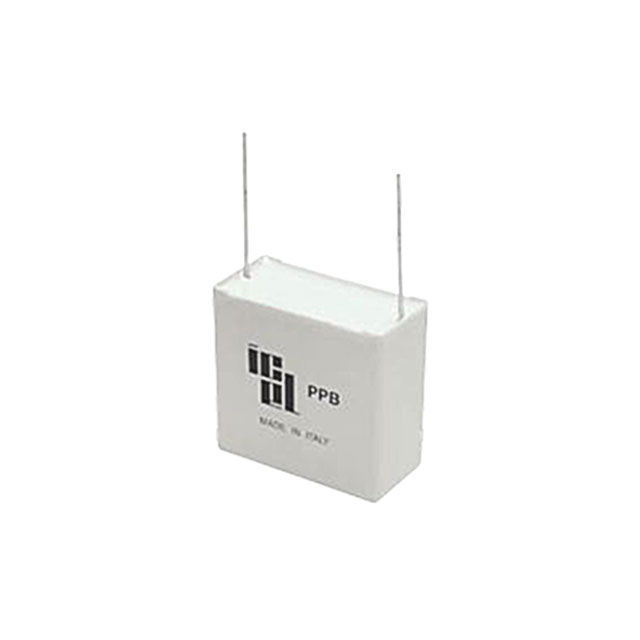

| Part number: | PPB1632470KGL |
| Description: | CAP FILM 0.047UF 10% 630VDC RAD |
| Manufacturer | Nichicon |
| Encapsulation | Bulk |
| Quantity | 600 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Nichicon" |
| Tolerance | ±10% |
| Package / Case | Radial |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 105°C |
| Applications | High Frequency, Switching; High Pulse, DV/DT; Snubber |
| Lead Spacing | 0.591" (15.00mm) |
| Termination | PC Pins |
| Dielectric Material | Polypropylene (PP), Metallized |
| Voltage Rating - AC | 400V |
| Voltage Rating - DC | 630V |
| Height - Seated (Max) | 0.630" (16.00mm) |
| Capacitance | 0.047 µF |
| Size / Dimension | 0.709" L x 0.394" W (18.00mm x 10.00mm) |
|
