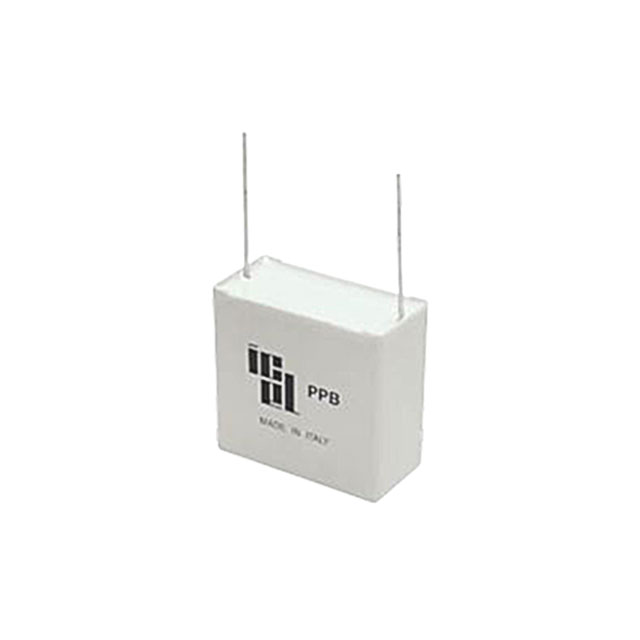

| Part number: | PPB2203330KJS |
| Description: | CAP FILM 0.33UF 10% 2KVDC RADIAL |
| Manufacturer | Nichicon |
| Encapsulation | Bulk |
| Quantity | 108 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Nichicon" |
| Tolerance | ±10% |
| Package / Case | Radial |
| Mounting Type | Through Hole |
| Operating Temperature | -55°C ~ 105°C |
| Applications | High Frequency, Switching; High Pulse, DV/DT; Snubber |
| Lead Spacing | 1.476" (37.50mm) |
| Termination | PC Pins |
| Dielectric Material | Polypropylene (PP), Metallized |
| Voltage Rating - AC | 700V |
| Voltage Rating - DC | 2000V (2kV) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Capacitance | 0.33 µF |
| Size / Dimension | 1.654" L x 1.378" W (42.00mm x 35.00mm) |
|
