| Part number: | 24M-24M+ |

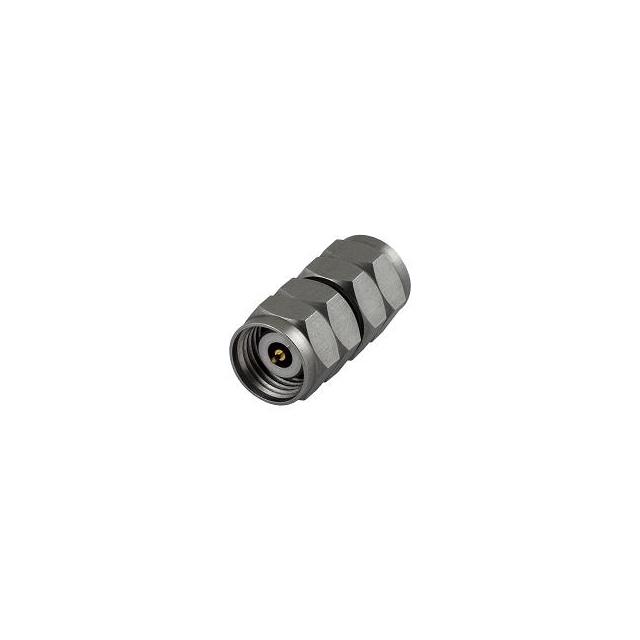

| Description: | ADPTR 2.4MM-M/2.4MM-M |
| Manufacturer | Mini-Circuits |
| Encapsulation | Bag |
| Quantity | 10 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Mini-Circuits" |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
| Convert From (Adapter End) | 2.4mm (APC-2.4, OS-50) Plug, Male Pin |
| Convert To (Adapter End) | 2.4mm (APC-2.4, OS-50) Plug, Male Pin |
| Operating Temperature | -55°C ~ 100°C |
| Insertion Loss | 0.15dB |
| Fastening Type | Threaded, Threaded |
| Adapter Series | 2.4mm to 2.4mm |
| Adapter Type | Plug to Plug |
| Center Gender | Male to Male |
| Conversion Type | Same Series |
| Body Material | Stainless Steel |
| Frequency - Max | 50 GHz |
|
