| Part number: | EKMM401VSN561MA45S |

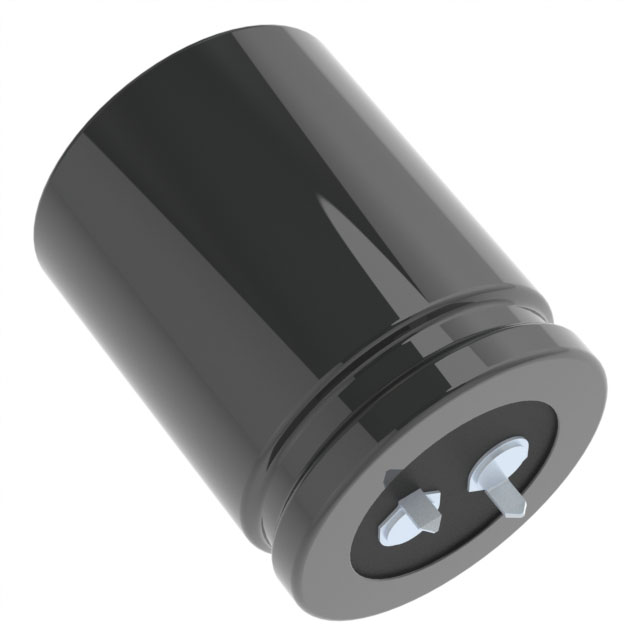

| Description: | CAP ALUM 560UF 20% 400V SNAP |
| Manufacturer | United Chemi-Con |
| Encapsulation | Bulk |
| Quantity | 200 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "United Chemi-Con" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - Snap-In |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C ~ 105°C |
| Applications | General Purpose |
| ESR (Equivalent Series Resistance) | 444mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Capacitance | 560 µF |
| Voltage - Rated | 400 V |
| Ripple Current @ Low Frequency | 2.12 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.0316 A @ 50 kHz |
|
