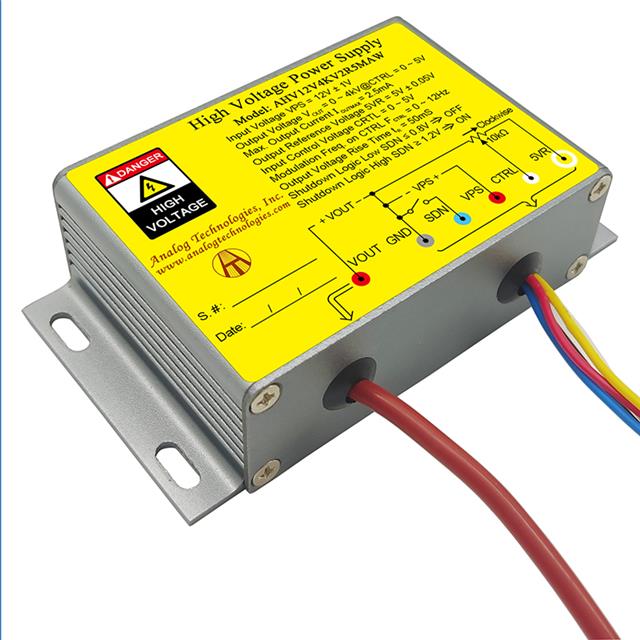

| Part number: | AHV12V4KV2R5MAW |
| Description: | High Voltage - Non-Isolated |
| Manufacturer | Analog Technologies |
| Encapsulation | Tape & Box (TB) |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Analog Technologies" |
| Size / Dimension | 4.11" L x 2.36" W x 1.10" H (104.4mm x 59.9mm x 27.9mm) |
| Mounting Type | Chassis Mount |
| Type | Enclosed |
| Operating Temperature | -10°C ~ 55°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 13V |
| Efficiency | 70% |
| Current - Output (Max) | 2.5mA |
| Voltage - Input (Min) | 11V |
| Voltage - Output 1 | 0 ~ 4000V |
| Number of Outputs | 1 |
|
