| Part number: | XZM2CYKCRKDG92W-3 |

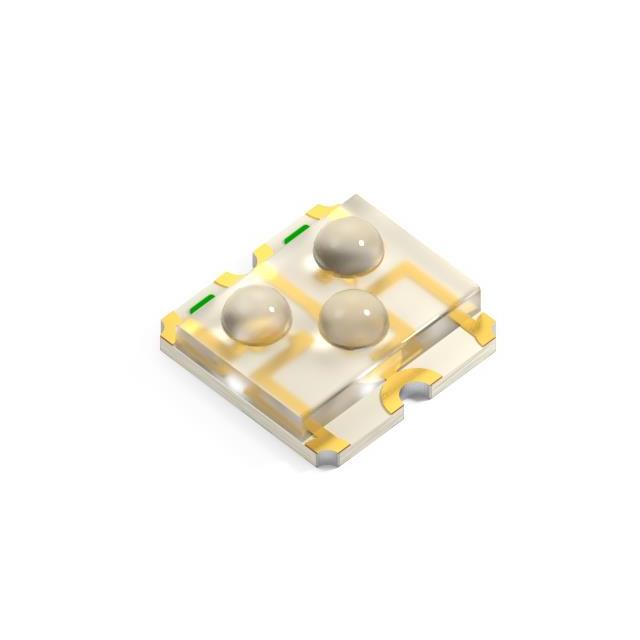

| Description: | LED GREEN/RED/YL CLR 1414 SMD |
| Manufacturer | SunLED |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "SunLED" |
| Package / Case | 1414 (3535 Metric) |
| Color | Green, Red, Yellow |
| Size / Dimension | 3.50mm L x 3.50mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 1590mcd Green, 3590mcd Red, 1590mcd Yellow |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 3.3V Green, 2.2V Red, 2V Yellow |
| Lens Color | Colorless |
| Current - Test | 20mA Green, 20mA Red, 20mA Yellow |
| Viewing Angle | 50° |
| Height (Max) | 1.35mm |
| Wavelength - Peak | 515nm Green, 640nm Red, 590nm Yellow |
| Wavelength - Dominant | 525nm Green, 625nm Red, 590nm Yellow |
| Supplier Device Package | 1414 |
| Lens Transparency | Clear |
| Lens Style | Round with Domed Top |
| Lens Size | 1.00mm Dia |
|
