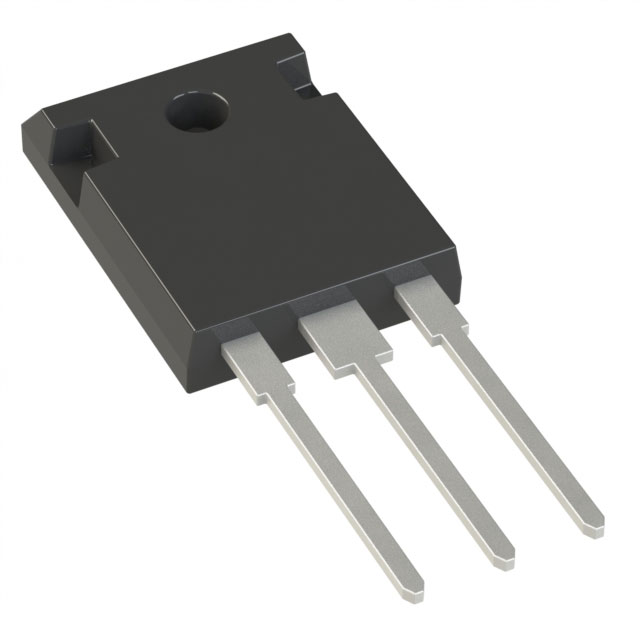

| Part number: | MIW30N65FA-BP |
| Description: | IGBT 650V 30A,TO-247AB |
| Manufacturer | Micro Commercial Components (MCC) |
| Encapsulation | Tube |
| Quantity | 1800 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Micro Commercial Components (MCC)" |
| Package / Case | TO-247-3 |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 175°C (TJ) |
| Input Type | Standard |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 30A |
| Supplier Device Package | TO-247AB |
| IGBT Type | Trench Field Stop |
| Td (on/off) @ 25°C | 37ns/113ns |
| Switching Energy | 870µJ (on), 260µJ (off) |
| Test Condition | 300V, 30A, 33Ohm, 15V |
| Gate Charge | 150 nC |
| Current - Collector (Ic) (Max) | 60 A |
| Voltage - Collector Emitter Breakdown (Max) | 650 V |
| Current - Collector Pulsed (Icm) | 120 A |
| Power - Max | 187 W |
|
