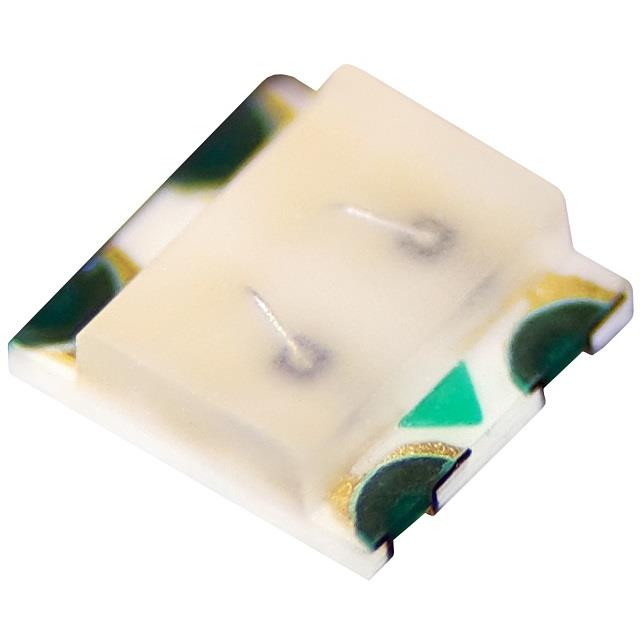

| Part number: | B2612USNG20D000212U1930 |
| Description: | LED GREEN/RED DIFFUSED 0606 SMD |
| Manufacturer | Harvatek Corporation |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Harvatek Corporation" |
| Package / Case | 0606 (1616 Metric) |
| Color | Green, Red |
| Size / Dimension | 1.60mm L x 1.50mm W |
| Mounting Type | Surface Mount |
| Millicandela Rating | 285mcd Green, 71.5mcd Red |
| Configuration | Independent |
| Voltage - Forward (Vf) (Typ) | 3.3V Green, 2V Red |
| Current - Test | 20mA Green, 20mA Red |
| Viewing Angle | 120°, 140°, 120°, 140° |
| Height (Max) | 0.65mm |
| Wavelength - Peak | 520nm Green, 632nm Red |
| Wavelength - Dominant | 525nm Green, 624nm Red |
| Supplier Device Package | 0606 |
| Lens Transparency | Diffused |
| Lens Style | Rectangle with Flat Top |
| Lens Size | 1.10mm x 1.50mm |
|
