| Part number: | MLX91211LUA-ABT-510-SP |
| Description: | SENSOR CURRENT HALL 25MV/MT TO92 |
| Manufacturer | Melexis |
| Encapsulation | Tube |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Melexis" |

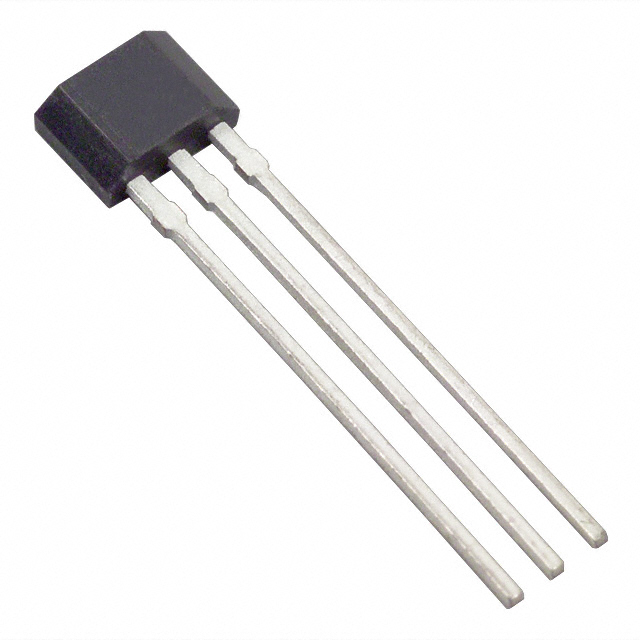

| Package / Case | TO-226-3, TO-92-3 Short Body |
| Polarization | Bidirectional |
| Sensitivity | 25mV/mT |
| Mounting Type | Through Hole |
| Output | Ratiometric, Voltage |
| Frequency | DC ~ 40kHz |
| Operating Temperature | -40°C ~ 150°C |
| Voltage - Supply | 3.135V ~ 5.5V |
| Response Time | 10µs |
| Sensor Type | Hall Effect |
| Linearity | ±0.9% |
| For Measuring | AC/DC |
| Current - Supply (Max) | 8mA |
| Supplier Device Package | TO-92-3 |
| Number of Channels | 1 |
|
