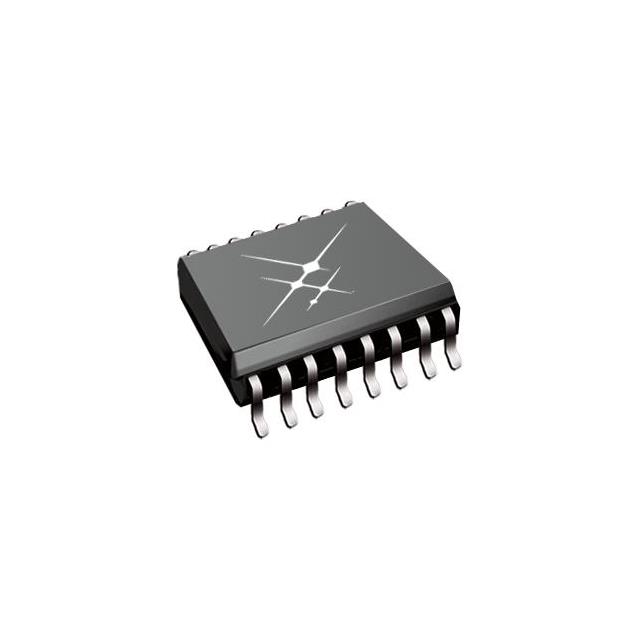

| Part number: | SI8652BB-AUR |
| Description: | AUTOMOTIVE 2.5 KV 3 FORWARD & 2 |
| Manufacturer | Skyworks Solutions, Inc. |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 2500 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Skyworks Solutions, Inc." |
| Package / Case | 16-SSOP (0.154", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 2.375V ~ 5.5V |
| Data Rate | 150Mbps |
| Technology | Capacitive Coupling |
| Voltage - Isolation | 2500Vrms |
| Inputs - Side 1/Side 2 | 3/2 |
| Supplier Device Package | 16-QSOP |
| Rise / Fall Time (Typ) | 2.5ns, 2.5ns |
| Common Mode Transient Immunity (Min) | 35kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 13ns, 13ns |
| Isolated Power | No |
| Channel Type | Unidirectional |
| Pulse Width Distortion (Max) | 4.5ns |
| Grade | Automotive |
| Number of Channels | 5 |
| Qualification | AEC-Q100 |
|
