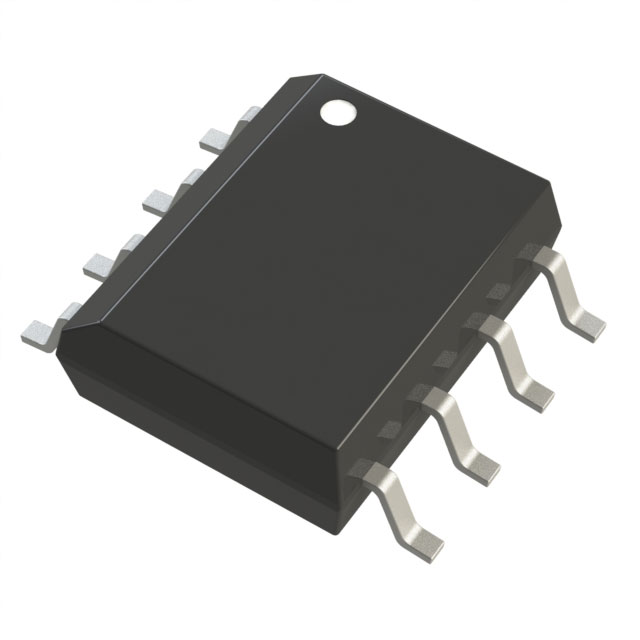

| Part number: | SI8711CC-AS |
| Description: | AUTOMOTIVE 3.75 KV OPTOCOUPLER R |
| Manufacturer | Skyworks Solutions, Inc. |
| Encapsulation | Tube |
| Quantity | 96 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Skyworks Solutions, Inc." |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 3V ~ 30V |
| Data Rate | 1Mbps |
| Technology | Capacitive Coupling |
| Voltage - Isolation | 3750Vrms |
| Inputs - Side 1/Side 2 | 1/0 |
| Supplier Device Package | 8-SOIC |
| Rise / Fall Time (Typ) | 15ns, 5ns |
| Common Mode Transient Immunity (Min) | 20kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 60ns, 60ns |
| Isolated Power | Yes |
| Channel Type | Unidirectional |
| Pulse Width Distortion (Max) | 20ns |
| Grade | Automotive |
| Number of Channels | 1 |
| Qualification | AEC-Q100 |
|
