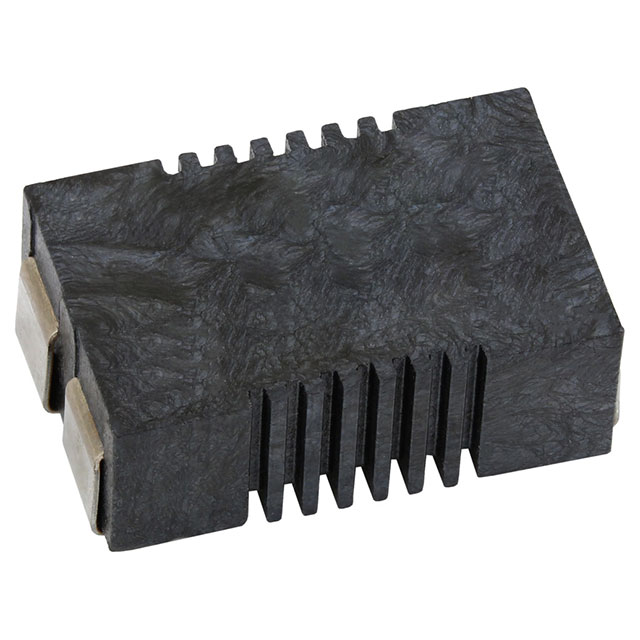

| Part number: | CDMM15M0D2500DET |
| Description: | CDMM, 15M, 0.5%, 250:1, RATIO TO |
| Manufacturer | Vishay Techno |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 250 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Vishay Techno" |
| Resistance (Ohms) | 15M |
| Tolerance | ±0.5% |
| Power Per Element | 1.5W |
| Circuit Type | Voltage Divider |
| Number of Pins | 3 |
| Package / Case | 4527 J-Lead |
| Temperature Coefficient | ±100ppm/°C |
| Size / Dimension | 0.455" L x 0.275" W (11.56mm x 6.98mm) |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C ~ 155°C |
| Applications | Voltage Divider (TCR Matched) |
| Supplier Device Package | 4527 |
| Height - Seated (Max) | 0.177" (4.49mm) |
| Grade | Automotive |
| Resistor Matching Ratio | ±0.5% |
| Resistor-Ratio-Drift | ±10 ppm/°C |
| Number of Resistors | 2 |
| Qualification | AEC-Q200 |
|
