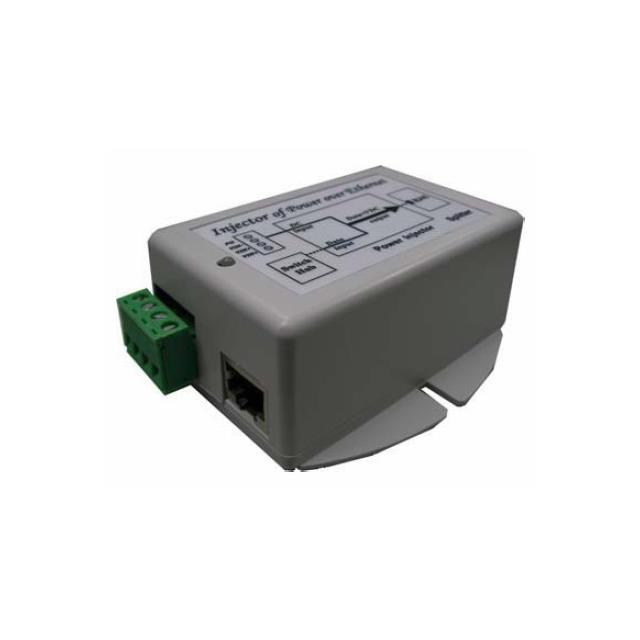

| Part number: | TP-DCDC-4824G |
| Description: | +/- 40-60VDC Wire Terminal In, D |
| Manufacturer | Tycon Systems Inc. |
| Encapsulation | Retail Package |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Tycon Systems Inc." |
| Features | OCP, OVP, SCP |
| Size / Dimension | 3.40" L x 3.00" W x 1.40" H (86.4mm x 76.2mm x 35.6mm) |
| Voltage - Output | 24V |
| Output Connector | RJ45 (Data, Power) |
| Mounting Type | Chassis Mount |
| Voltage - Input | 36 ~ 72V |
| Type | Passive Injector |
| Operating Temperature | -30°C ~ 60°C |
| Data Rate | 10/100/1000 Mbps |
| Approval Agency | CSA, FCC, TUV |
| Efficiency | 75% |
| Power (Watts) - Per Port | 24W |
| Input Connector | RJ45 (Data, Power) |
| Compliance | IEEE802.3af |
| Current - Output | 1 A |
| Number of Ports | 2 |
| Standard Number | 60950-1 |
|
