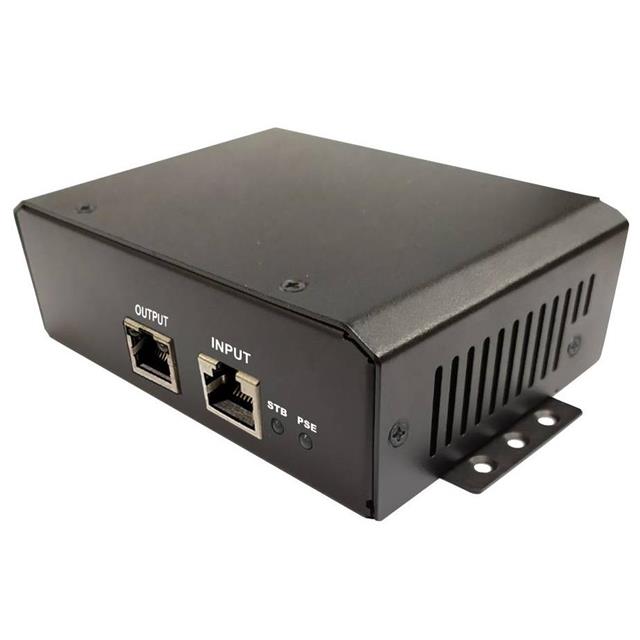

| Part number: | TP-DC-1256GD-VHP |
| Description: | 10-60VDC Wire Term Input, 56V 70 |
| Manufacturer | Tycon Systems Inc. |
| Encapsulation | Retail Package |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Tycon Systems Inc." |
| Features | OCP, SCP |
| Size / Dimension | 5.50" L x 3.40" W x 1.57" H (139.7mm x 86.4mm x 39.9mm) |
| Voltage - Output | 56V |
| Mounting Type | Chassis Mount |
| Voltage - Input | 10 ~ 60V |
| Type | Passive Injector |
| Operating Temperature | -40°C ~ 70°C |
| Data Rate | 5Gbps |
| Efficiency | 85% |
| Power (Watts) - Per Port | 70W |
| Compliance | IEEE802.3bt |
| Current - Output | 1.25 A |
| Number of Ports | 4 |
| Standard Number | 62368-1 |
|
