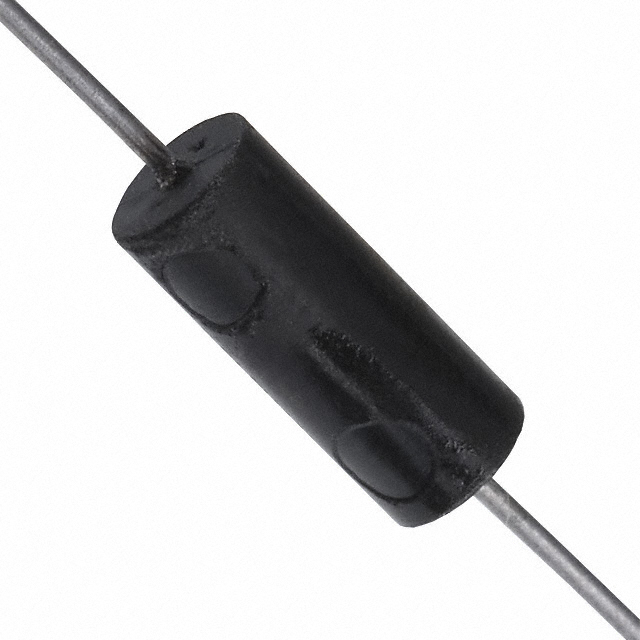

| Part number: | 1641-564K |
| Description: | FIXED IND 560UH 90MA 10.5 OHM TH |
| Manufacturer | API Delevan |
| Encapsulation | Bulk |
| Quantity | 500 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "API Delevan" |
| Tolerance | ±10% |
| Package / Case | Axial |
| Size / Dimension | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) |
| Mounting Type | Through Hole |
| Shielding | Shielded |
| Type | Molded |
| Operating Temperature | -55°C ~ 105°C |
| DC Resistance (DCR) | 10.5Ohm Max |
| Q @ Freq | 60 @ 790kHz |
| Frequency - Self Resonant | 4.7MHz |
| Current - Saturation (Isat) | 55mA |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 790 kHz |
| Inductance | 560 µH |
| Current Rating (Amps) | 90 mA |
|
