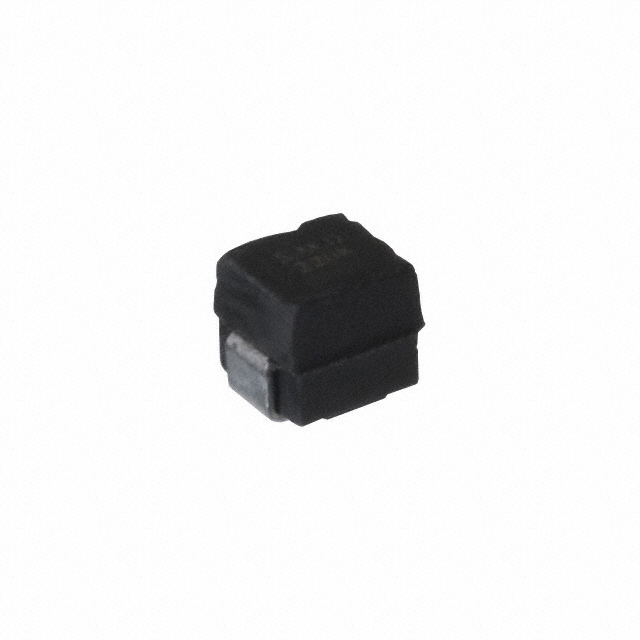

| Part number: | 1008-332K |
| Description: | FIXED IND 3.3UH 398MA 950MOHM SM |
| Manufacturer | API Delevan |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 500 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "API Delevan" |
| Tolerance | ±10% |
| Package / Case | Nonstandard |
| Size / Dimension | 0.105" L x 0.095" W (2.66mm x 2.41mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 950mOhm Max |
| Q @ Freq | 30 @ 7.9MHz |
| Frequency - Self Resonant | 60MHz |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 7.9 MHz |
| Height - Seated (Max) | 0.095" (2.41mm) |
| Inductance | 3.3 µH |
| Current Rating (Amps) | 398 mA |
|
