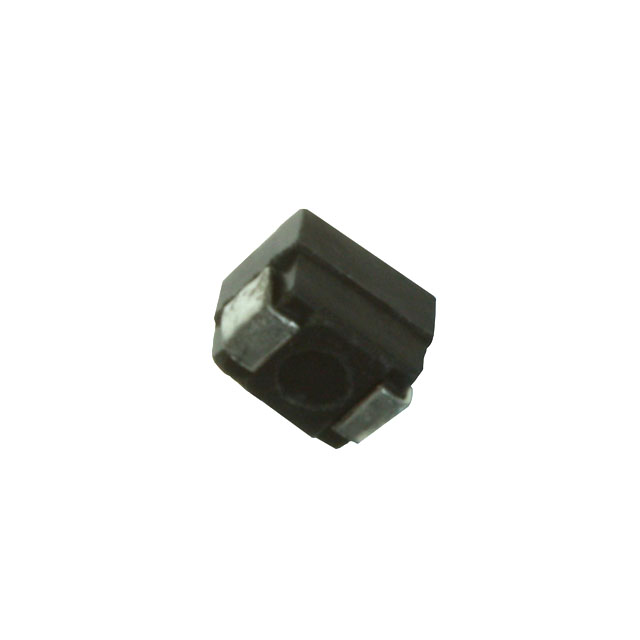

| Part number: | 1210-222K |
| Description: | FIXED IND 2.2UH 431MA 1 OHM SMD |
| Manufacturer | API Delevan |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 500 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "API Delevan" |
| Tolerance | ±10% |
| Package / Case | 1210 (3225 Metric) |
| Size / Dimension | 0.128" L x 0.095" W (3.25mm x 2.42mm) |
| Mounting Type | Surface Mount |
| Shielding | Unshielded |
| Operating Temperature | -55°C ~ 125°C |
| DC Resistance (DCR) | 1Ohm Max |
| Q @ Freq | 30 @ 7.9MHz |
| Frequency - Self Resonant | 70MHz |
| Material - Core | Ferrite |
| Inductance Frequency - Test | 7.9 MHz |
| Supplier Device Package | 1210 |
| Height - Seated (Max) | 0.101" (2.57mm) |
| Inductance | 2.2 µH |
| Current Rating (Amps) | 431 mA |
|
