| Part number: | XF14M31818S420 |

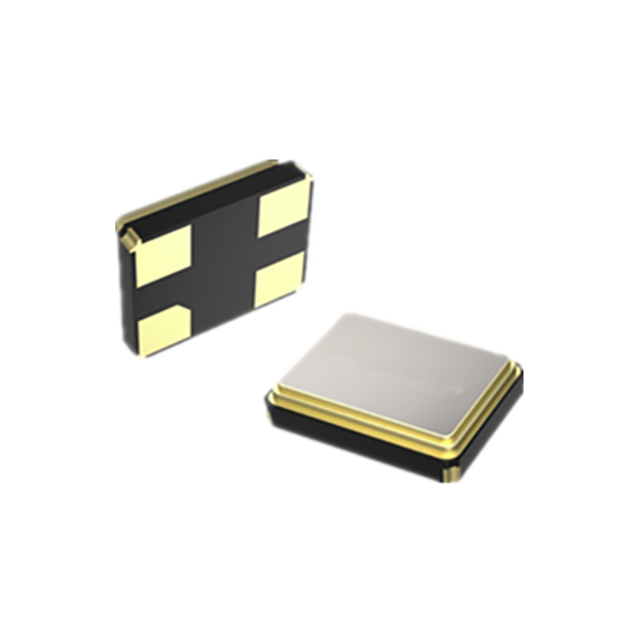

| Description: | CRYSTAL 14.31818M 10PPM, 20PF 4 |
| Manufacturer | TGS |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 6000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "TGS" |
| Package / Case | 4-SMD, No Lead |
| Load Capacitance | 20pF |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Mounting Type | Surface Mount |
| Type | MHz Crystal |
| Operating Temperature | -40°C ~ 85°C |
| Frequency Stability | ±30ppm |
| Frequency Tolerance | ±10ppm |
| Operating Mode | Fundamental |
| Height - Seated (Max) | 0.031" (0.80mm) |
| ESR (Equivalent Series Resistance) | 100 Ohms |
| Frequency | 14.31818 MHz |
|
