| Part number: | MMF404989 |

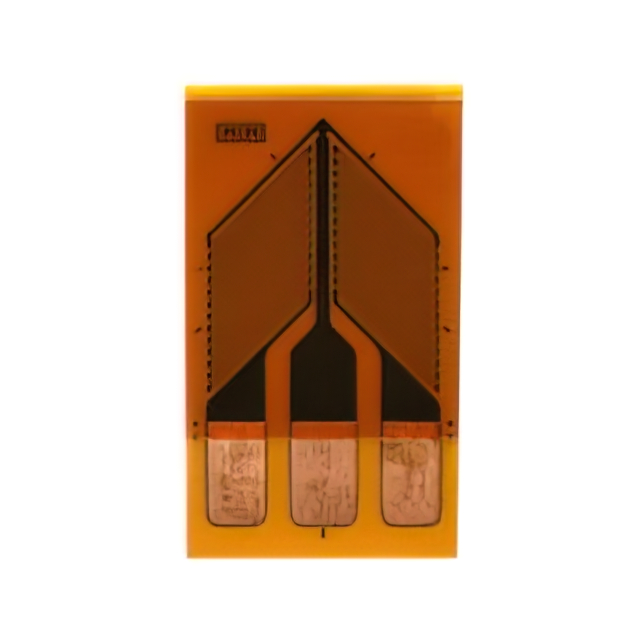

| Description: | CEA-05-187UVA-350 - STRAIN GAGES |
| Manufacturer | VPG Micro-Measurements |
| Encapsulation | Bag |
| Quantity | 1 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "VPG Micro-Measurements" |
| Operating Temperature | -103 ~ 347°F (-75 ~ 175°C) |
| Length - Overall | 0.63" (15.9mm) |
| Resistance Tolerance | ±0.2% |
| Width - Overall | 0.39" (9.8mm) |
| Length - Active | 0.187" (4.75mm) |
| Strain Range | ±5% |
| Pattern Type | Shear/Torque |
| Length - Overall Pattern | 0.560" (14.22mm) |
| Width - Active | 0.170" (4.32mm) |
| Width - Overall Pattern | 0.320" (8.13mm) |
| Resistance | 350 Ohms |
|
