| Part number: | MMF404564 |

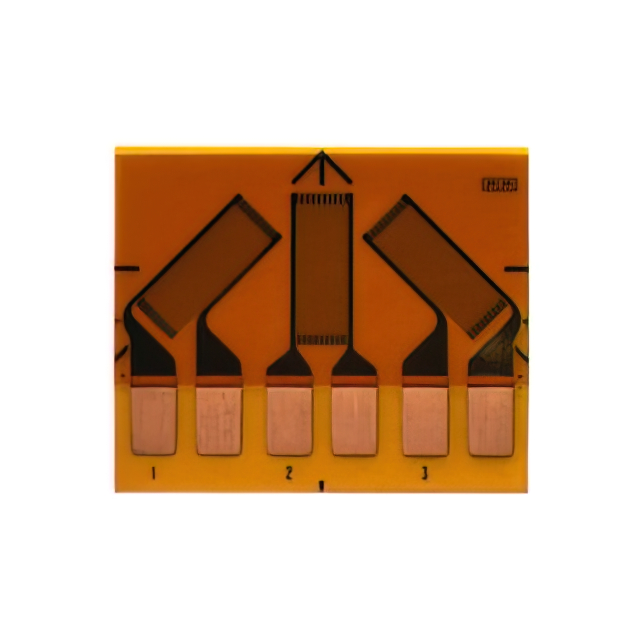

| Description: | CEA-06-250URA-350/P2 - STRAIN GA |
| Manufacturer | VPG Micro-Measurements |
| Encapsulation | Bag |
| Quantity | 1 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "VPG Micro-Measurements" |
| Operating Temperature | -103 ~ 347°F (-75 ~ 175°C) |
| Length - Overall | 0.65" (16.5mm) |
| Resistance Tolerance | ±0.2% |
| Width - Overall | 0.80" (20.3mm) |
| Length - Active | 0.250" (6.35mm) |
| Strain Range | ±5% |
| Pattern Type | Rectangular Rosette |
| Length - Overall Pattern | 0.500" (12.70mm) |
| Width - Active | 0.120" (3.05mm) |
| Width - Overall Pattern | 0.760" (19.30mm) |
| Resistance | 350 Ohms |
|
