| Part number: | 1241.1619.23 |

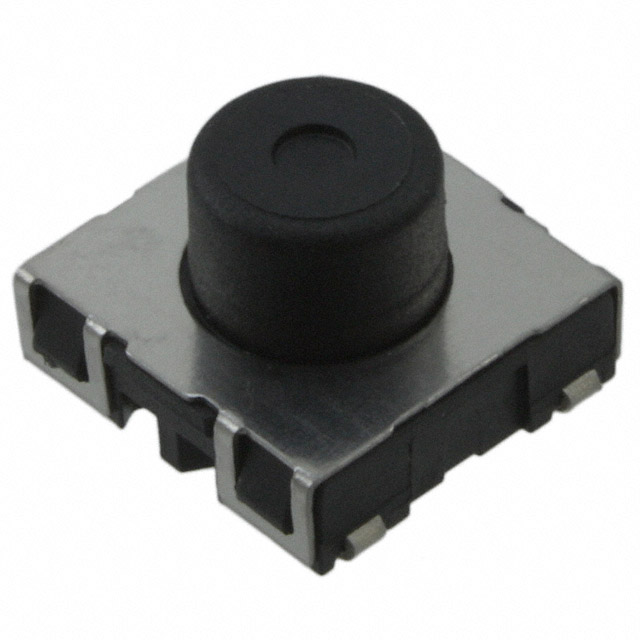

| Description: | SWITCH TACTILE SPST-NO 0.05A 42V |
| Manufacturer | SCHURTER |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 450 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "SCHURTER" |
| Features | Tactile Feedback |
| Mounting Type | Surface Mount |
| Circuit | SPST-NO |
| Switch Function | Off-Mom |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | J Lead |
| Illumination | Non-Illuminated |
| Contact Rating @ Voltage | 0.05A @ 42VDC |
| Actuator Type | Standard |
| Operating Force | 220gf |
| Outline | 11.40mm x 11.40mm |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Actuator Height off PCB, Vertical | 7.75mm |
| Actuator Orientation | Top Actuated |
|
