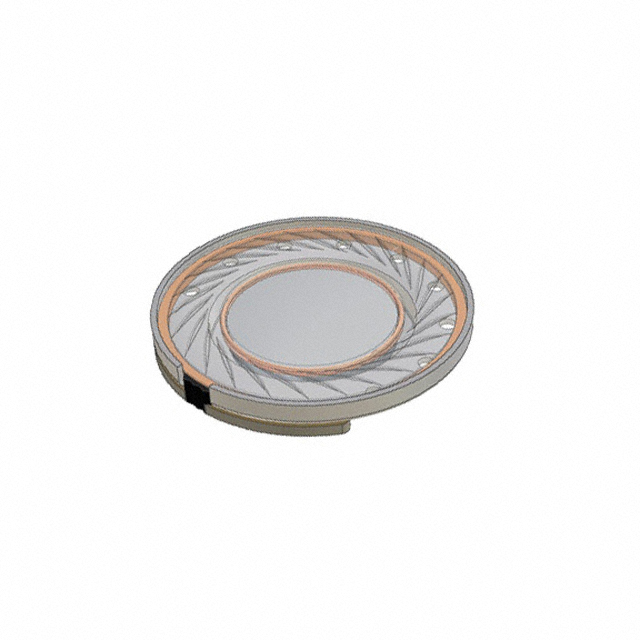

| Part number: | AS01308MR-R |
| Description: | SPEAKER 8OHM 200MW TOP PORT 86DB |
| Manufacturer | PUI Audio, Inc. |
| Encapsulation | Tray |
| Quantity | 100 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "PUI Audio, Inc." |
| Size / Dimension | 0.512" Dia (13.00mm) |
| Shape | Round |
| Type | General Purpose |
| Technology | Magnetic |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Termination | Solder Pads |
| Frequency - Self Resonant | 1050Hz |
| Port Location | Top |
| Height - Seated (Max) | 0.087" (2.20mm) |
| Impedance | 8 Ohms |
| Power - Max | 400 mW |
| Power - Rated | 200 mW |
| Frequency Range | 1.05 kHz ~ 20 kHz |
| Efficiency - dBA | 86.00 |
| Efficiency - Testing | 200mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
|
