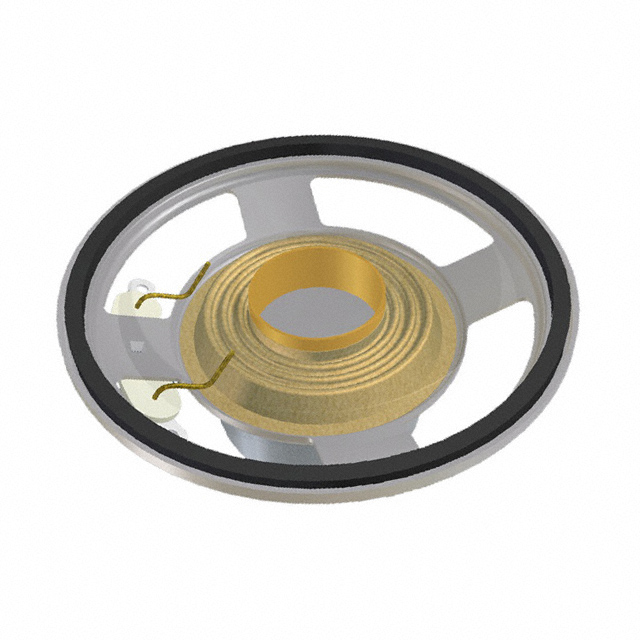

| Part number: | AS05008MR-R |
| Description: | SPEAKER 8OHM 200MW TOP PORT 80DB |
| Manufacturer | PUI Audio, Inc. |
| Encapsulation | Tray |
| Quantity | 25 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "PUI Audio, Inc." |
| Size / Dimension | 1.969" Dia (50.00mm) |
| Shape | Round |
| Type | General Purpose |
| Technology | Magnetic |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Termination | Solder Eyelet(s) |
| Frequency - Self Resonant | 550Hz |
| Port Location | Top |
| Height - Seated (Max) | 0.748" (19.00mm) |
| Impedance | 8 Ohms |
| Power - Max | 400 mW |
| Power - Rated | 200 mW |
| Frequency Range | 550 Hz ~ 4.5 kHz |
| Efficiency - dBA | 80.00 |
| Efficiency - Testing | 1W/500mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
|
