| Part number: | 219-5LPSTJ |

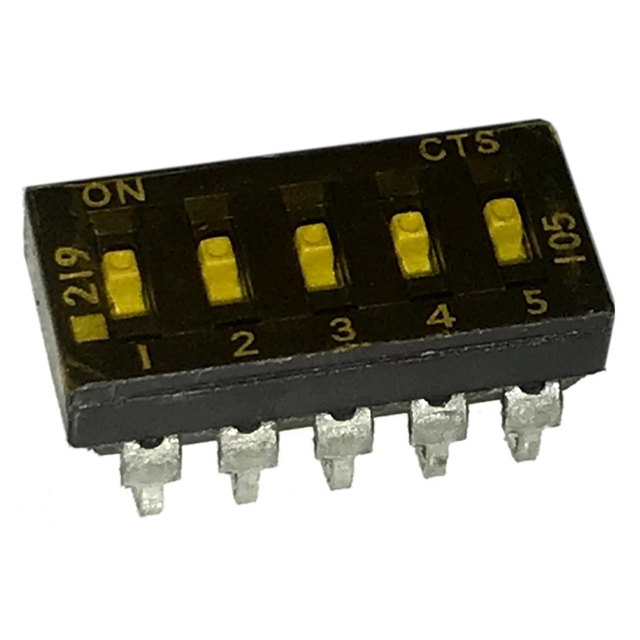

| Description: | SWITCH SLIDE DIP SPST 0.1A 20V |
| Manufacturer | CTS Corporation |
| Encapsulation | Tube |
| Quantity | 40 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "CTS Corporation" |
| Features | Epoxy Sealed Terminals, Tape Seal |
| Contact Finish | Gold |
| Voltage Rating | 20VDC |
| Current Rating (Amps) | 100mA |
| Mounting Type | Surface Mount |
| Pitch | 0.100" (2.54mm), Full |
| Circuit | SPST |
| Operating Temperature | -55°C ~ 85°C |
| Termination Style | J Lead |
| Actuator Type | Slide (Standard) |
| Height Above Board | 0.200" (5.08mm) |
| Actuator Level | Flush, Recessed |
| Washable | Yes |
| Contact Material | Beryllium Copper |
| Number of Positions | 5 |
|
