| Part number: | EGXA451VSN681MA60L |

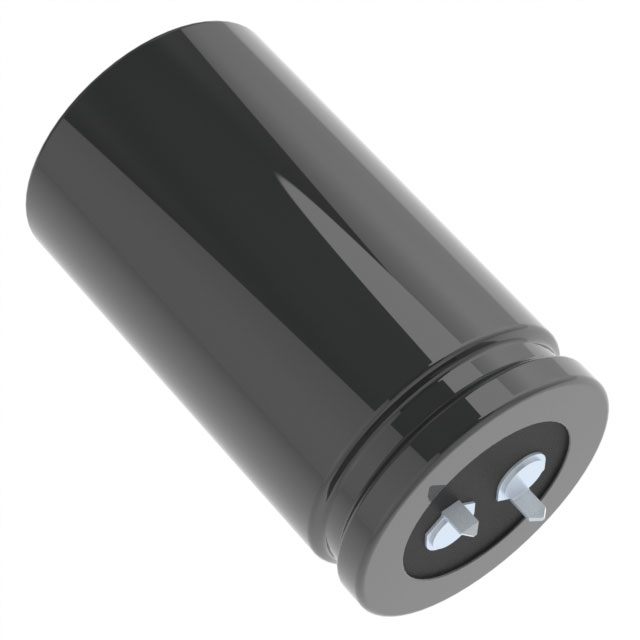

| Description: | CAP ALUM 680UF 20% 450V SNAP |
| Manufacturer | United Chemi-Con |
| Encapsulation | Bulk |
| Quantity | 400 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "United Chemi-Con" |
| Tolerance | ±20% |
| Package / Case | Radial, Can - Snap-In |
| Size / Dimension | 1.378" Dia (35.00mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 125°C |
| Applications | General Purpose |
| Lead Spacing | 0.394" (10.00mm) |
| Lifetime @ Temp. | 3000 Hrs @ 125°C |
| Height - Seated (Max) | 2.461" (62.50mm) |
| Capacitance | 680 µF |
| Voltage - Rated | 450 V |
| Ripple Current @ Low Frequency | 2.43 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.4749 A @ 50 kHz |
|
