| Part number: | BSNX630ELL150KK25S |

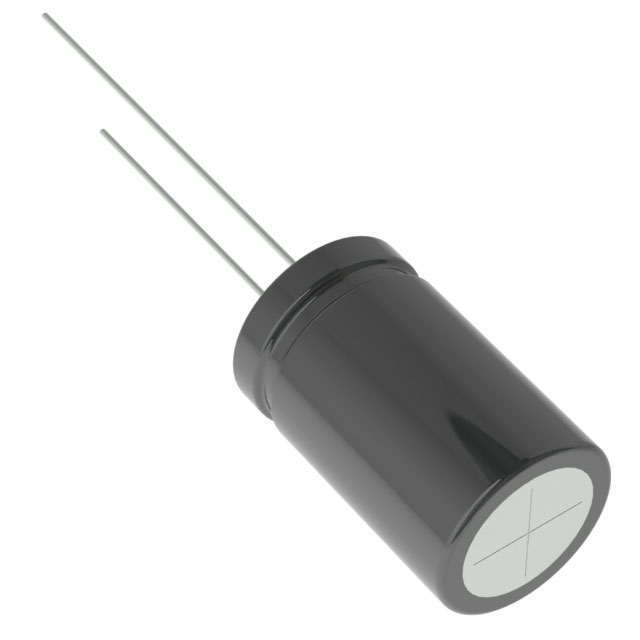

| Description: | CAP ALUM 15UF 10% 63V RADIAL |
| Manufacturer | United Chemi-Con |
| Encapsulation | Bulk |
| Quantity | 1000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "United Chemi-Con" |
| Tolerance | ±10% |
| Package / Case | Radial, Can |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Polarization | Polar |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Audio |
| Lead Spacing | 0.197" (5.00mm) |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Capacitance | 15 µF |
| Voltage - Rated | 63 V |
| Ripple Current @ High Frequency | 290 mA @ 1 kHz |
|
