| Part number: | EMF21-7 |
| Description: | TRANS NPN PREBIAS/PNP SOT563 |
| Manufacturer | Zetex Semiconductors (Diodes Inc.) |
| Encapsulation | Tape & Reel (TR) |
| Quantity | 3000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Zetex Semiconductors (Diodes Inc.)" |

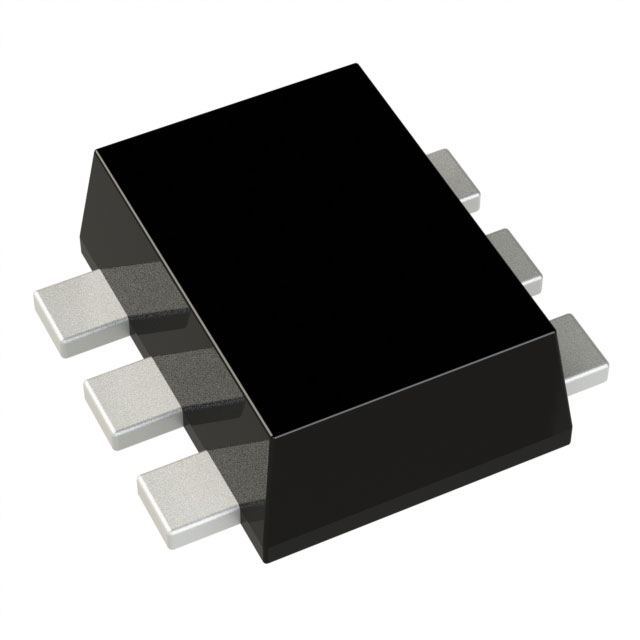

| Package / Case | SOT-563, SOT-666 |
| Mounting Type | Surface Mount |
| Transistor Type | 1 NPN Pre-Biased, 1 PNP |
| Power - Max | 300mW |
| Current - Collector (Ic) (Max) | 100mA, 500mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V, 12V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 500µA, 10mA / 250mV @ 10mA, 200mA |
| Current - Collector Cutoff (Max) | 500nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 5mA, 5V / 270 @ 10mA, 2V |
| Frequency - Transition | 250MHz, 280MHz |
| Resistor - Base (R1) | 10kOhms |
| Resistor - Emitter Base (R2) | 10kOhms |
| Supplier Device Package | SOT-563 |
|
