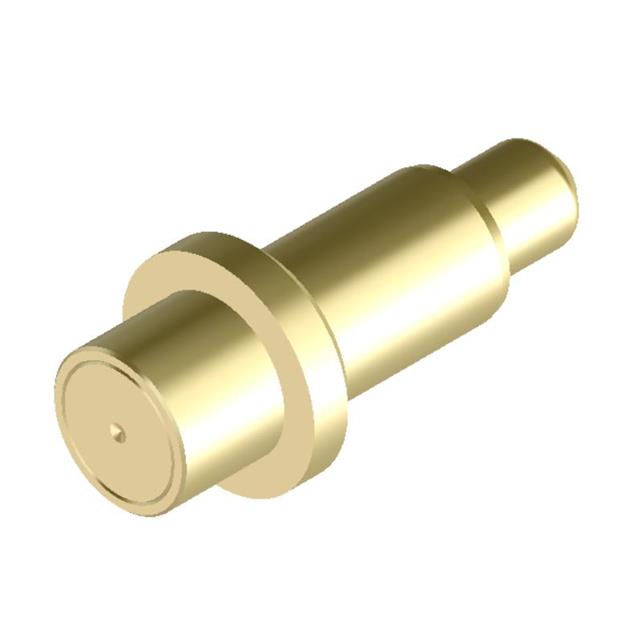

| Part number: | 90708-AS |
| Description: | SPRING PIN CLIP DESIGN |
| Manufacturer | Preci-Dip |
| Encapsulation | Bulk |
| Quantity | 25000 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Preci-Dip" |
| Contact Finish | Gold |
| Current Rating (Amps) | 5A |
| Mounting Type | Through Hole |
| Operating Temperature | -25°C ~ 125°C |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Contact Finish Thickness | 20.0µin (0.51µm) |
| Contact Material | Beryllium Copper |
| Mating Cycles | 20000 |
| Maximum Working Height | 0.169" (4.29mm) |
| Minimum Working Height | 0.114" (2.90mm) |
| Pad Layout Dimension | Circular - 0.094" (2.39mm) |
| Plunger Size | 0.042" (1.07mm) Dia |
| Operating Force - Initial | 61.18gf |
| Operating Force - Mid Compression | 132.56gf |
|
