| Part number: | 1278799 |

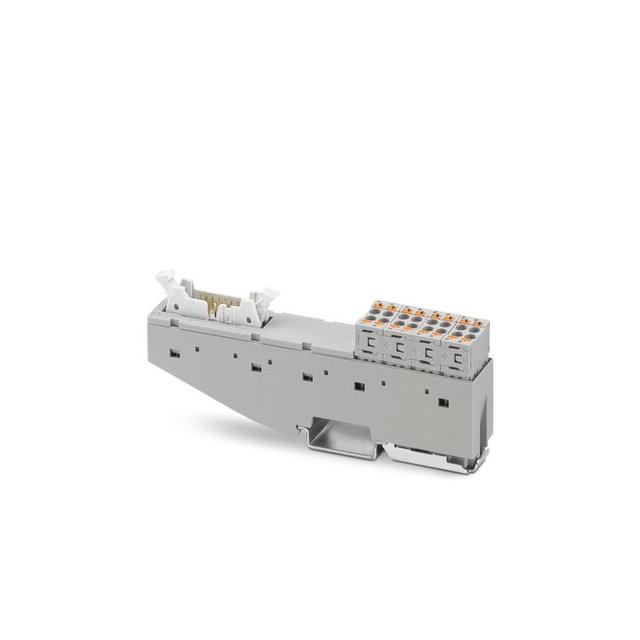

| Description: | VARIOFACE FRONT CONNECT, 1:1 IDC |
| Manufacturer | Phoenix Contact |
| Encapsulation | Bulk |
| Quantity | 1 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Phoenix Contact" |
| Voltage - Rated | 30VAC, 60VDC |
| Length | 5.000" (127.00mm) |
| Wire Gauge | 16-24 AWG |
| Width | 0.744" (18.90mm) |
| Operating Temperature | -40°C ~ 70°C |
| Current Rating (Per Contact) | 1 A |
| Process Side Connection | Terminal Blocks - Spring Connection |
| Control Side Connection | Rectangular, Male |
| Control Side Cable Retainer | Latches |
| Positions / Poles | 14 |
|
