| Part number: | 1135304 |

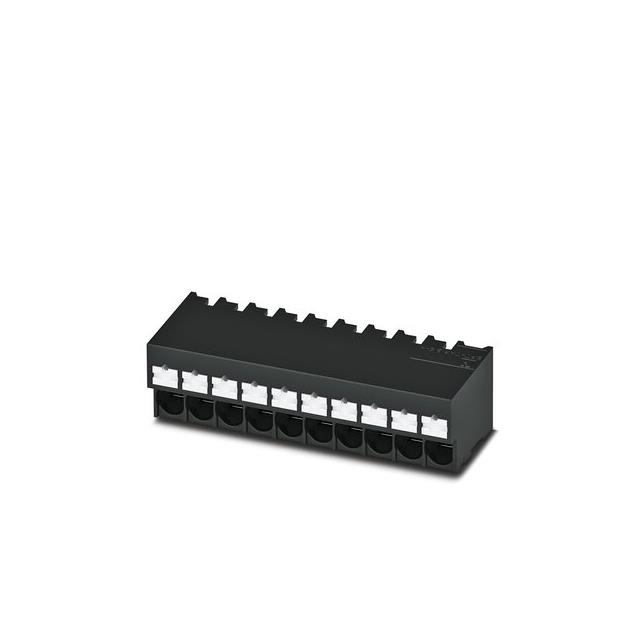

| Description: | SPT-THR 2 5/ 9-H-5 0 P26 |
| Manufacturer | Phoenix Contact |
| Encapsulation | Bulk |
| Quantity | 40 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Phoenix Contact" |
| Features | Push Button Actuated |
| Color | Black |
| Mounting Type | Through Hole |
| Wire Gauge | 12-24 AWG |
| Pitch | 0.197" (5.00mm) |
| Operating Temperature | -40°C ~ 105°C |
| Mating Orientation | Horizontal with Board |
| Positions Per Level | 9 |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Contact Material - Plating | Copper Alloy - Tin Plated |
| Wire Termination | Screwless - Leg Spring, Push-In Spring |
| Current | 20 A |
| Number of Levels | 1 |
| Voltage | 500 V |
|
