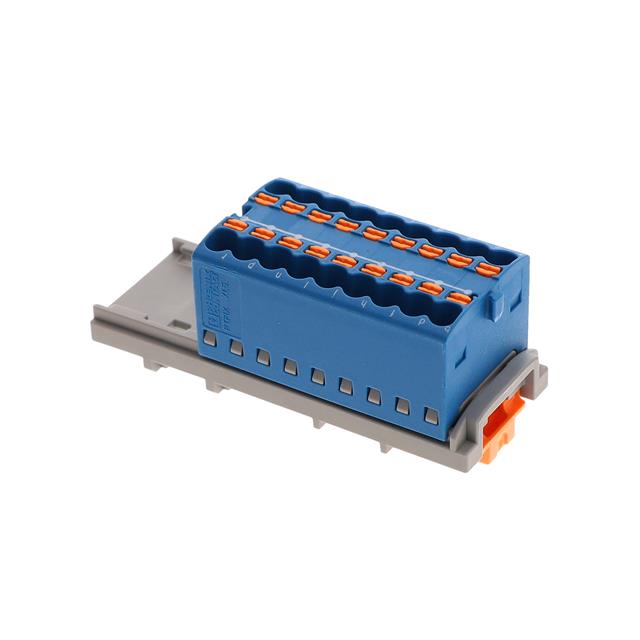

| Part number: | 1046950 |
| Description: | PTFIX 18X1 5-NS35 BU |
| Manufacturer | Phoenix Contact |
| Encapsulation | Bulk |
| Quantity | 20 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Phoenix Contact" |
| Features | Block of 9 |
| Mounting Type | DIN Rail |
| Length | 2.287" (58.10mm) |
| Type | Middle |
| Operating Temperature | -60°C ~ 105°C |
| Termination Style | Push In, Spring |
| Material - Insulation | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Terminal - Width | 21.6mm |
| Wire Gauge or Range - AWG | 12-26 AWG |
| Wire Gauge or Range - mm² | 0.14-2.5mm² |
| Height (Max) | 1.118" (28.40mm) |
| Housing Color | Blue |
| Stripping Length | 8mm ~ 10mm |
| Current - UL | 20 A |
| Current - IEC | 17.5 A |
| Voltage - IEC | 500 V |
| Voltage - UL | 500 V |
| Number of Positions | 18 |
|
