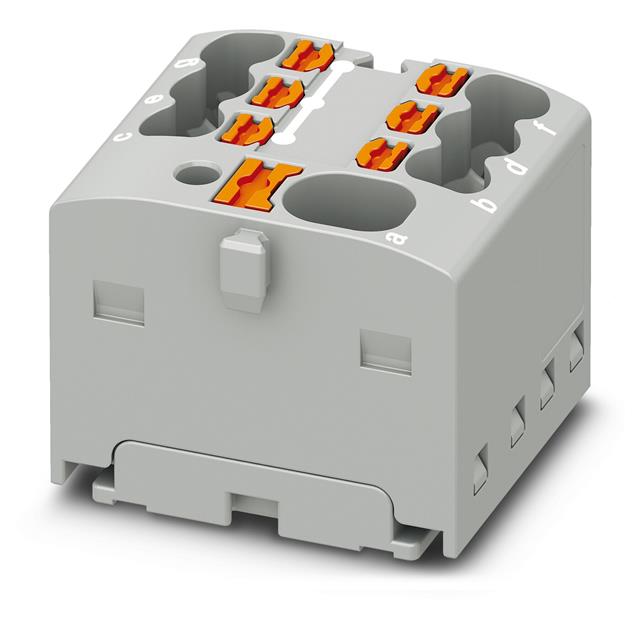

| Part number: | 1047466 |
| Description: | PTFIX 4/6X1 5 GY |
| Manufacturer | Phoenix Contact |
| Encapsulation | Bulk |
| Quantity | 20 |
| RoHS | 1 |
| TYPE | DESCRIPTION |
| Mfr | "Phoenix Contact" |
| Features | Block of 3 |
| Mounting Type | Direct Mount |
| Length | 0.850" (21.60mm) |
| Type | Middle |
| Operating Temperature | -60°C ~ 105°C |
| Termination Style | Push In, Spring |
| Material - Insulation | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Terminal - Width | 19.0mm |
| Height (Max) | 0.697" (17.70mm) |
| Housing Color | Gray |
| Current - IEC | 17.5 A |
| Voltage - IEC | 450 V |
| Voltage - UL | 300 V |
| Number of Positions | 7 |
|
