| Part number: | 1046980 |

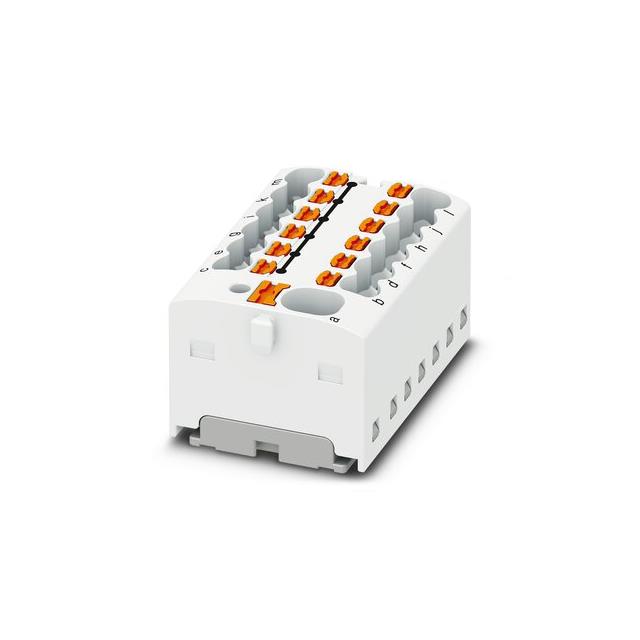

| Description: | PTFIX 4/12X1 5-G WH |
| Manufacturer | Phoenix Contact |
| Encapsulation | Bulk |
| Quantity | 20 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Phoenix Contact" |
| Features | Block of 6 |
| Mounting Type | Direct Mount |
| Length | 0.850" (21.60mm) |
| Type | Middle |
| Operating Temperature | -35°C ~ 105°C |
| Termination Style | Push In, Spring |
| Material - Insulation | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Terminal - Width | 31.4mm |
| Wire Gauge or Range - AWG | 10-24 AWG |
| Wire Gauge or Range - mm² | 0.2-6mm² |
| Height (Max) | 0.736" (18.70mm) |
| Housing Color | White |
| Stripping Length | 10mm ~ 12mm |
| Current - UL | 30 A |
| Current - IEC | 41 A |
| Voltage - IEC | 450 V |
| Voltage - UL | 300 V |
| Number of Positions | 13 |
|
