| Part number: | 3273774 |

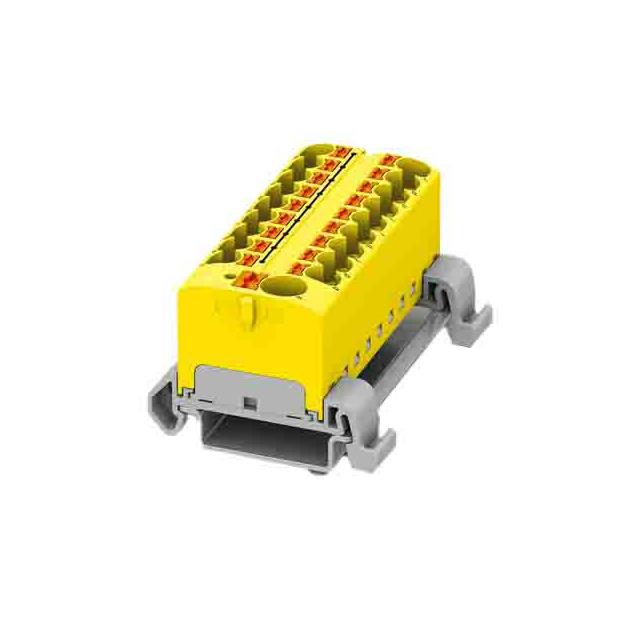

| Description: | PTFIX 10/18X4-NS35A YE |
| Manufacturer | Phoenix Contact |
| Encapsulation | Bulk |
| Quantity | 8 |
| RoHS |
| TYPE | DESCRIPTION |
| Mfr | "Phoenix Contact" |
| Features | Block of 9 |
| Mounting Type | DIN Rail |
| Length | 1.799" (45.70mm) |
| Type | Middle |
| Operating Temperature | -60°C ~ 105°C |
| Termination Style | Push In, Spring |
| Material - Insulation | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Terminal - Width | 64.8mm |
| Height (Max) | 1.217" (30.90mm) |
| Housing Color | Yellow |
| Current - IEC | 32 A |
| Voltage - IEC | 800 V |
| Number of Positions | 19 |
|
